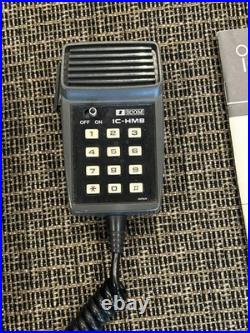

This is a working Icom IC-229H 144mHz transceiver with an Icom IC-HM8 microphone. The mounting bracket is included no hardware. This little radio is clean and includes the original owner’s manual as well as the schematic. Europe TX: 144-146 MHz RX: 136-174 MHz USA TX: 144-148 MHz RX: 136-174 MHz. 5 / 10 / 12.5 / 15 / 20 / 25 KHz, 1 MHz. Channels / memory management. 20 regular 2 scan edge 1 call RAM storage with lithium battery backup. Repeater shift / offset. ±0 to 10 MHz in 25 KHz steps. 13.8 VDC ±15%. Current drain / power consumption. RX: 500-800 mA TX: 4-10.5 A. Antenna impedance / connector. 50 ohm / SO-239 (On pigtail). 14040155 mm (5.51.66.1). 1 Kg (2.2 lb). CTCSS/PL encoder (USA version only, optional on other versions) RF attenuator. Double conversion superheterodyne 1st IF: 17.2 MHz 2nd IF: 455 KHz. 0.16 uV (12 dB SINAD). AF output power / speaker. 2.4 W at 10% distortion / 8 ohm. 3.5 mm, 8 ohm. Max FM deviation (Factory set). Better than -60 dB. Microphone impedance / connector. 600 ohm / 8-pin (Metal locking ring connector).
